ifm3d Overview

Library and utilities for working with ifm pmd-based 3D ToF Perception devices. Compatible with the O3R, O3D and O3X platforms. This library is available in Python, C++, and has wrappers for ROS and ROS2.
C++ API Reference
Python API Reference
Comprehensive documentation is available on ifm3d.com.

Build (Ubuntu) Build (Windows)

3D cloud

Distance

RGB

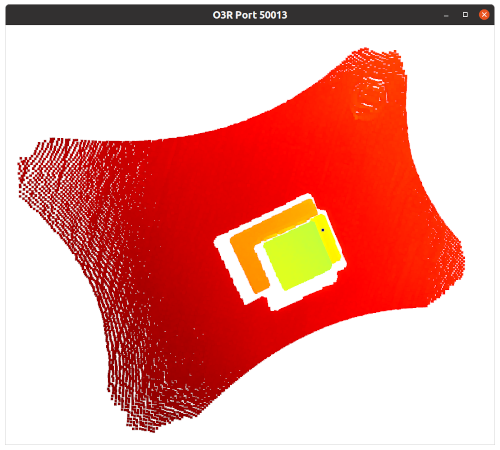

3D cloud of a stack of boxes

Distance image of a stack of boxes

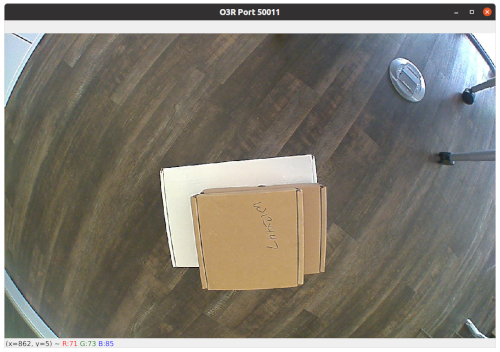

RGB image of a stack of boxes

Released Versions

⚠️ Note that the main branch is generally in a work in progress state and you probably want to use a tagged release version for production.

⚠️ Note that O3D and O3X support is currently experimental- Use at your own risk!.

For a full compatibility matrix between the ifm3d library, the O3R firmware and the Vision Assistant GUI, please refer to the compatibility matrix on ifm3d.com.

Supported languages

ifm3d is a C++ based library, with a Python wrapper mirroring the available features. We support the following versions of these two languages:

Name

Versions

Python

3.8, 3.9, 3.10, 3.11

C++

GCC 7.5+, MSVC 2019+

Organization of the Software

The ifm3d software is organized into modules, they are:

Module name

Description

device

Provides an implementation of the XMLRPC protocol for configuring the camera and pmd imager settings.

framegrabber

Provides an implementation of the PCIC protocol for streaming pixel data and triggered image acquisition.

swupdater

Provides utilities for managing the SWUpdate subsystem of the camera.

pcicclient

Direct access to PCIC to, for example, actuate digital IO.

tools

Provides the ifm3d command line tool for manipulating and introspecting the hardware interactively. It is also suitable for usage within shell scripts to, for example, manage fleets of cameras.

pybind11

Provides Python bindings through pybind11 to the native C++ API. Supports all general camera functionality as well as a zero-copy interface to image data, exposed as NumPy arrays.

deserialize

Provides definitions and functions for deserializing structs sent over PCIC.

Installation instructions

Please refer to the corresponding section on ifm3d.com.

Supported docker containers

Docker containers are available for the ifm3d library, both on GHCR and on the dockerhub. You can pull them with:

docker pull ghcr.io/ifm/ifm3d:stable

OR

docker pull ifmrobotics/ifm3d:stable

Note that we provide 2 tags, stable always points to the latest tagged version, and latest is built nightly with the latest changes on the main branch. The latest tag is typically a work in progress.
For more details on the available containers, see here.
For more details on docker and the O3R platform see here.

Report a bug and check the known issues

Please see the GitHub Issue Tracker, or contact support.robotics@ifm.com.

LICENSE

Please see the LICENSE file.
